Initial Attempt to Establish a Mathematical Model of the Effect of Global Warming on the Lithosphere

Cheng Q. and Bonham-Carter G., 2005, GIS and Spatial Analysis, Proc. of IAMG 2005, Publ. by Intern. Assoc. for Mathematical Geology pp. 1216-1221
ISBN: 0-97034220-1-7

---

This is an updated, supplemental version of the article that was submitted for consideration in Oslo in 2008 (33IGC; E1L01105L).

---

Effect of Plio-Quaternary glaciation on inertial characteristics of isostatically / eustatically affected parts of the lithosphere: the effect of global warming on the lithosphere

N. Parubets (1), Y. A. Tsekhanov (2), P. Parubets (3)

(1) Granton Institute of Technology, 263 Adelaide Street West, Toronto, M5H1Y3 Canada, nicolas.parubets@gmail.com
(2) Voronezh State University, 84 October Street, Voronezh, 394006, Russia, tsekanov@yandex.ru
(3) Dept.of Mech. Engineering, University of Waterloo, Waterloo, N2L3G1 Canada, philip.parubets@gmail.com

Abstract

The mid-ocean ridge displacements (MORD) are perhaps the most remarkable formations on the ocean floor. Currently, the only explanation for the their existence is Euler’s theorem – a mathematical abstract, which does not satisfactorily reveal the underlying physical forces that could cause these displacements. The presented model links the origin of the MORD with the enormous mass redistribution of water among the tectonic plates during the Plio-Quaternary glaciations (P-QG). In the least, this paper presents possible examples of powerful physical forces, which are required to create these geophysical phenomena.

Introduction

The analysis of the effect of P-QG on the lithosphere is derived from the critique of the origin of the MORD. The ridge displacements are unique geological formations that cover the entire ocean floor and can be measured in hundreds, or in some cases, thousands of kilometres; the centres of the ridges originated in recent geological time. The crucial question is: were the ridges’ centers (see Figure 1 and Figure 3) created in that strange, displaced manner (Figure 1A) with such great distances between them, or were they broken and displaced after their formation (Figure 1B to 1A)?

The Euler theorem’s geometry is the only cause cited for the origin of these displacements as they appear at the present time. Yet, as a matter of fact, this theorem only points to some abstract mathematical pole, when some point or points of a sphere (in the case of the applicability of the theorem to geophysics, a spherical shell) are moving on the surface of the sphere (Euler, 1755; Smirnov, 1964). What is most important, however, is that the theorem does not and could not reveal the forces that are moving these shells. Moreover, if Euler’s theorem is applied to all the actual ridge displacements on the entire ocean floor, the theorem reveals an unprecedented large number of the different “poles of rotation,” which should coexist somehow in the same geological time (See Figure 3).

Hence, if Euler’s theorem does not sufficiently explain the origin of these displacements, there are currently no other interpretation as to how these displacements occurred after their formation.

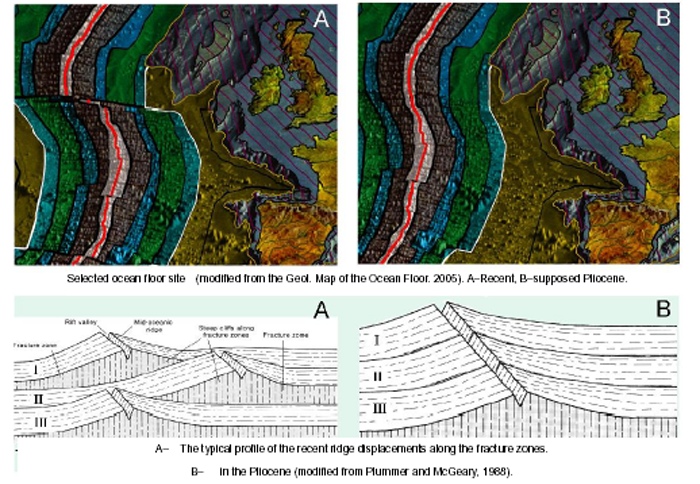

Fig. 1 – Comparison of the same area of the oceanic floor in the supposed Pliocene and Recent.

Since the age of the center of the ridges is Plio-Quaternary, the only way to discover the cause of these catastrophic displacements, is to examine the stratigraphical records of that period of time. Only two significant events in the Plio-Quaternary – both well documented – can be identified from the available stratigraphical data: the major glaciation that enveloped the North and South hemispheres and the orogenic processes on the continents at this time (see Figure 2). It is reasonable to assume that at least one of them and perhaps both are very causes of the ridge displacements.

Despite the fact that the first trace of Cenozoic glaciation appeared in the middle Eocene, only in the Pliocene did significant ice accumulation begin, with the reaching of the Glacial Maximum (GM) and then the Last Glacial Maximum (LGM) at the Pleistocene with a total ice sheet volume of up to 110 x 10⁶ km³ (see Table 1). This means that, since the beginning of the glaciation, the Pacific tectonic plate, for example, was relieved of approximately 16 x 10¹⁵ kg of water pressure. The African plate was relieved of 4.8 x 10¹⁵ kg, and a total of up to 90 x 10¹⁵ kg of water had been relocated from the ocean onto the Eurasian, North American, and Antarctic tectonic plates during GM in the form of ice sheets. Such an enormous load redistribution among the tectonic plates had to bring correspondingly enormous isostatical/eustatical readjustments of different parts of the planet’s crust. Presented below are the mechanisms of the horizontal dislocation of some parts of the lithosphere due to glacio-isostasy/eustasy at the Plio-Quaternary and also projections of it in recent times.

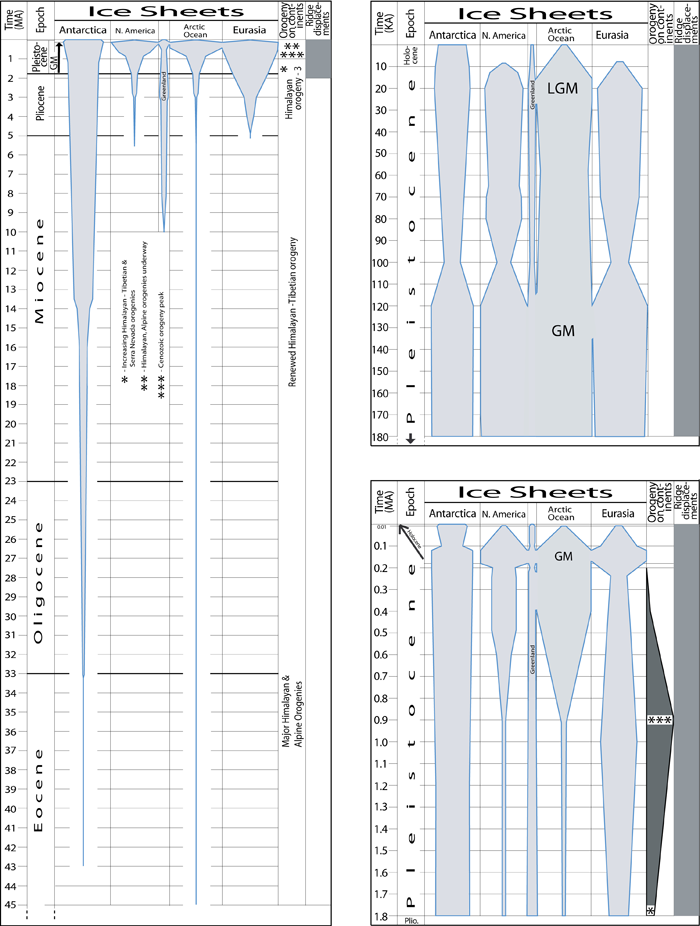

Fig. 2 - Probable global model of Cenozoic Glaciation

Fig. 2 illustrates the most probable global model of Cenozoic glaciation, based on summarized and mean data selected from well-known and accepted ice sheets models and works in the field: B.G. Anderson and H. W. Borns Jr. (1994), P.J. Barrett (1989), J.C. Behrendt and A. Cooper (1991), D.I. Benn and D.J.A. Evans (1998), C.R. Bentley (1997), M.J. Bentley (1999), J.E. Brotchie and R. Silwester (1969), P.E. Calkin and G. Young (2002), C.H. Denton and T.J. Hughes (1981), R.L. Edwards (1995), J. Ehlers (1996), R.H. Fillon (1972), P-L Forsström et al. (2003), L.A. Frakes et al. (1992), S. Funder (1989), B.U. Haq and F.W.B. Van Eysinga (1998), Y. Herman et al. (1989), T.J. Hughes (1985 and 1998), P. Huybrechts (1990), P. Huybrechts et al. (2003), W.O. Kupsch (1967), E. Le Meur and P. Huybrechts (2003), C.H. Lear et al. (2000), J. Menzies and T.J. Hughes (2002), K.G. Miller et al. (1991), K. Moran et al. (2006), M. Nakada and K. Lambeck (1988), A. Nesje and S.O. Dahl (2000), W.R. Peltier (1988), L. Polyak et al. (2001), M.C. Serreze (2007), N.J. Shackleton (1987), M.J Siegert (2001), A.M Tushingham and W.R Peltier (1991), P. Wu and W.R. Peltier (1983 and 1984), J.C., Zachos et al. (1993 and 1996), C. Zweck and P. Huybrechts (2003).

Table 1: Volume of ice in the ice sheets and water in the ocean during Plio-Quarternary glaciation .


Table 1 was created using the same data as in Figure 2.

Click here for larger version

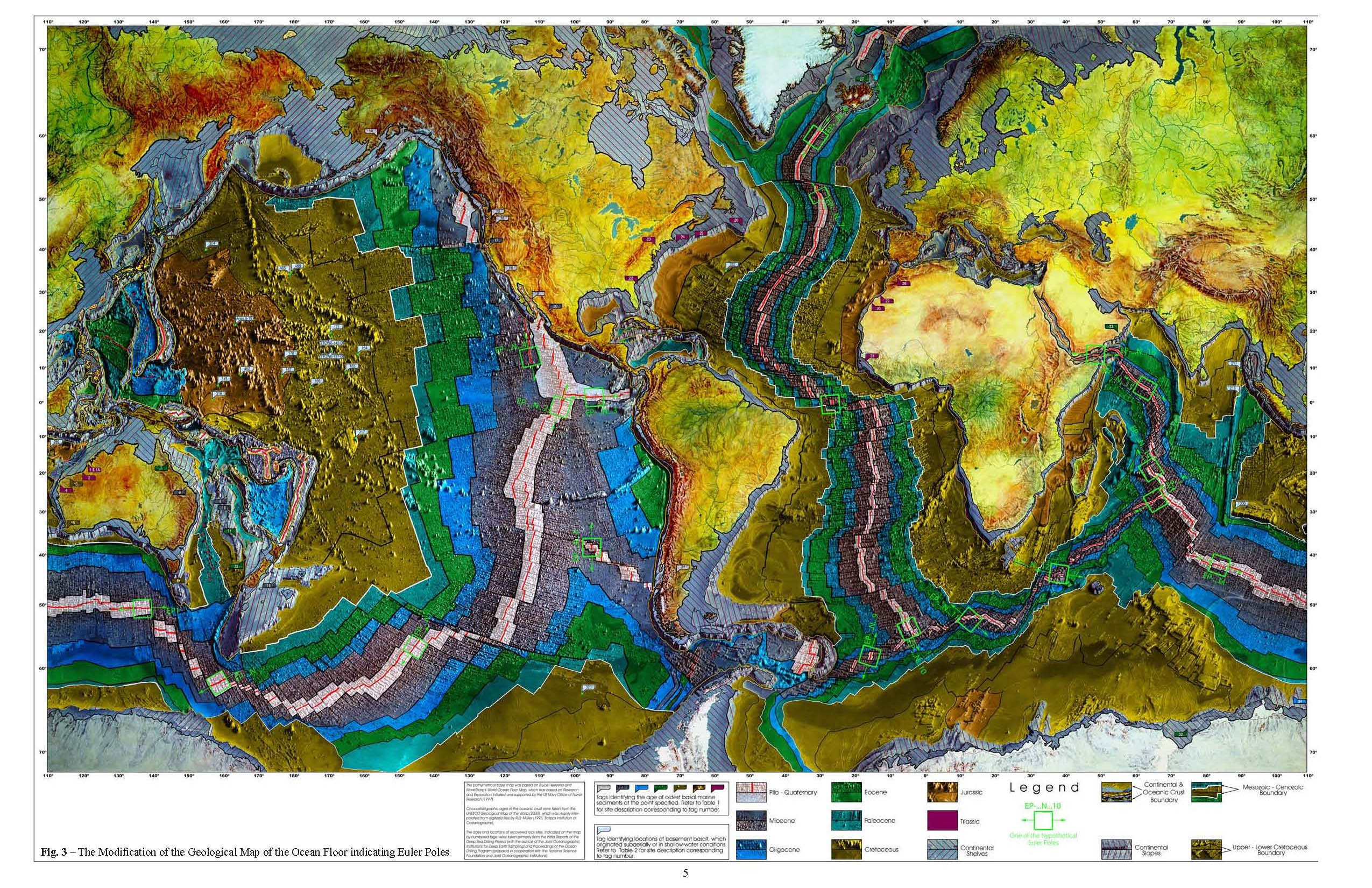

Fig. 3 – The Modification of the Geological Map of the Ocean Floor indicating Euler Poles

Fig 3. illustrates the Modification of the Geological Map of the Ocean Floor (2008). The Green squares with arrows indicate Euler poles for different sections of the MORD. The existence of a great number of “poles of rotation” hampers efforts to apply the Euler theorem concept to reveal the physical forces leading to the formation of ridge displacements.

Proposed model of oceanic floor displacements resulting from the P-QG.

A) During the development of the presented model, we proceed that the thickness ratio of the combined lithosphere and crust, hL, to the radius of the planet R, is approximately 150km/6380km or 0.024. In mechanics of thin-walled membranes, this shell is modeled such that forces can only act on it in tension or compression. Bending loads are ignored. We also applied the results of well known geophysical models as well as postulates of isostasy and rheology, which directly or/and indirectly demonstrates three categories of features of the lithosphere and asthenosphere:

■ The deformation and/or depression of some parts of the crust from 400 to 800m resulting from imposed loading during the LGM (Mörner, 1980; Svendsen and Mangerud, 1987; Kupsch, 1967; Daly, 1934). Comparing the extent of glaciation/loading in the LGM and GM, we can extrapolate that the crust could have depressed by up to one km during the GM. This depth could be considered to be even greater if the rebounding processes of adjacent areas are taken into account. This assumption is indirectly supported by data indicating that present-day glacial isostatic adjustments reach 7mm/year in some areas (Khan et al., 2007) or even more, up to 10mm/year (Sella et al., 2007). It appears that since GM, some areas of the planet have depressed/rebounded up to 1300m magnitude.

■ The balance between the loaded parts of the crust and their surroundings: this balance occurs, not in the uniform, thin, and elastic lithosphere, but in the viscously fluid asthenosphere (Ehlers, 1996; Officer et al., 1988). This means that, not only the crust under the superimposed load sank, but also parts of the lithosphere under the crust sank into the asthenosphere, probably to same degree.

■ A slow response to the lithospheric movements on the isostasy/eustacy, loading/reloading of the crust and lithosphere (Mörner, 1980; Walcott, 1970; Brotchie and Silvester, 1969; Houghton et al., 2001).

B) We also proceed with the following generalizations: the asthenosphere is initially considered to be a sealed spherical shell, which is filled by a viscous fluid. It is then possible to assume that the pressure, as result of 110 x 10⁶ km³ of ice accumulation in the polar regions during P-QG, must have led to an equal increase in the hydrostatic pressure inside the fluid asthenosphere by ∆q, as defined below:

∆q = ρ1 g h ≈ 10MPa (1)

where: ρ1-density of ice = 10³kg/m³
g – gravitational constant = 9.81m/s²
h – mean thickness of ice accumulation ≈ 1km

As a result of the polar loading/depression, unloaded areas (especially in equatorial regions) are subject to additional tensions inside the lithosphere. As the asthenosphere is not an absolutely sealed shell, part of the additional hydrostatical pressure build-up would be reduced as pressure is released through the plume’s veins in the lithosphere. However, even this smaller increased pressure inside the asthenosphere must result in additional tension stress in the crust and lithosphere:

∆σ = (∆q/2) R/ hL = (10MPa /2) 6380km/150km = 212MPa (2)

At much thinner parts of crust and lithosphere, say 15km thick, the stress could be as great as 2120MPa.. In the thinnest parts of the lithosphere near the ridges, where it is only 1.5km thick, the stress could be even greater, perhaps 2x10⁴ MPa.

If only a small part, say 10 percent, of the increasing hydrostatical pressure inside the asthenosphere ∆q (1) does not escape through the lithosphere and crust, the stress build-up could be estimated to be 21.2MPa. However, the imposed stress still exceeds the tensile strength of basalt (≈14.5MPa) and greatly exceeds the basalt’s cohesive tensile strength by several orders of magnitude.

Thus, the max ice load at GM and LGM could have led to the rupture of the thinnest parts of the lithosphere. In mechanics, the failure mode for materials which accumulate tension and compressive loads propagate perpendicularly to the maximum tension loads. If this is so, it is clear why the fracture zones are mostly perpendicular to the MOR. Once they appear, the fracture zones remain the weakest parts of the lithosphere and crust and thus are more susceptible to horizontal displacements of the lithosphere due to its vertical movement as described in the following.

C) As previously mentioned, it is legitimate to assume that growing ice sheets during the P-QG depressed some parts of the crust and lithosphere underneath by a depth of up to 1,300m. The geophysical meaning of this is that some parts of the lithosphere were slowly moved toward the planet’s centre, by up to that distance. This decreasing distance to the planet’s centre led to the subsequent increase in the kinetic energy of those ice loaded parts of the lithosphere.

Moment of inertia of this mass: I = mr² (6)
Moment of rotational kinetic energy L = Iω = mωr² (7)
The mass radius of rotation r = Rcosφ(8)
where R is the planet’s radius
cosφ is the angle from the equator.

During time dt, mass m moved towards the planet’s center by dr: From equation 8, we have dr = dRcosφ and it follows that: dL =2mωcos²φRdr (10).

The application of an external impulse over time, Mdt, is required, so we have: Mdt = 2mωcos²φRdR/dt (12).

dR/dt is the vertical velocity of the ice-loaded mass. V_n and therefore, M =2mωcos²φRV_n (14).

Mechanically, that moment is created by applying tangent force Ft, where M=Ftr (15). Substituting (15) into (14), it is evident that the tangential force, Ft, is dependant on the vertical velocity by: Ft = 2mωcosφVⁿ (16).

For each lithosphere mass unit, dm = dxdyh ρ, acts force dFt = 2ρdxdyhωcosφV_n.

Substituting the appropriate constants, we get the total dynamic tension on dM is 7x10^-5 Pa only. Thus, the dynamic tension in the lithosphere and crust due to the lithosphere’s vertical velocity is insignificant. The vertical shift of square kilometer of lithosphere would exceed 1.19x10¹⁰ kJ in one year. Part of this energy had been transformed into heat, however, part of it into potential energy, which builds up over time. Even if only a fraction of that energy is transformed into elastic strain in the lithosphere and crust, then since GM, energy of up to 1.5x10¹¹ MJ per km² of lithosphere was directed towards horizontal displacements in some areas due to their vertical movements. This accumulation of energy since GM is critical and is perhaps enough to exceed the lithosphere’s elastic flexure limit and the shear resistance of the surrounding rocks. The escalating tearing process of the lithosphere should have occurred mainly along the already existing, weak oceanic fracture zones as indicated in Section B. The combination of the hydrostatic-induced stresses discussed in Section A and the inertial-induced stresses discussed in Section B constitute the base for the presented model.

D) In the case of Antarctica (Parubets, et al., 2005) the moment of inertia (I) for a spherical semi-shell is

Where: m is a mass of the portion of the spherical shell; R is the planet’s radius; r is the radius of the “simplified Antarctica” (2,600 km); Θ₁ is the angle between the equatorial plane and the edge of Antarctica; Θ₂ is the angle between the equatorial plane and the axis of rotation. If the portion of the crust is 5,200 km in diameter, located at the site of Antarctica, and assumed to be the Antarctica tectonic plate, the moment of its inertia is

The volume and the mass of this part of the crust are 743 x 10⁶ km³ and 0.208 x 10²² kg respectively; the mass of the portion of the lithosphere under it is: 1.0494 x 10²² kg.

Hence, the total mass of this portion of the lithosphere is 1.2574 x 10²² kg, and the moment of the inertia of the “simplified” Antarctica tectonic plate is I = 0.07 x 1.2574 x 10²² R² kg.m² = 88 x 10¹⁹ R² kgm². In a case of Antarctica’s depression during GM down to 400 m, the moment of inertia is: I_d-400 = 88 x 10¹⁹ x (R – 400)² kgm² = 3.5839 x 10³⁴ kgm². In the case of Antarctica’s depression down to 1,300m the moment of inertia is: I_d-1,300 = 88 x 10¹⁹ x (R – 1,300)² kgm² = 3.5826x10³⁴ kgm².

It is important to note that the greatest contribution to this decrease in rotation inertia is attributed to the isostatic inward bending and depression of the crust furthest from the axis of rotation. Isostatically depressed regions near the axis have no effect on this decrease.

As a result, Antarctica’s rotational velocity should increase if conservation of rotational kinetic energy is observed (L_Ant = ½Iω²). However, the shear force imposed by the surrounding crust and lithosphere (approximately 16,300km in length, 35km thick crust, and 150km thick lithosphere) prevent this increase in velocity, which results in a substantial energy release. This energy release could be calculated from the change in rotational kinetic energy due to a change in rotational inertia without the corresponding change in rotational velocity. Accordingly, the differences in rotational kinetic energy before and after depression are: L_{Ant b/d} – L_{Ant dif – 400} = ½ω² (I_{A b/d} – I _{dif – 400}) – in a case of depression down to 400m, and L_{Ant b/d} – L_{Ant dif-1,300} =½ ω² (I_{A b/d} – I_{dif – 1,300}) – in a case of depression down to 1,300m, where ω is a planet’s angular velocity (ω = 7.2722 x 10⁵ rad/sec). Hence, an energy of 2 x 10¹⁶ MJ had been released while Antarctica had depressed down to 400m, and released energy up to 5 x 10¹⁶ MJ while Antarctica had depressed down to 1,300m.

As a result, energy up to 16,500MJ per m² had been extinguished, and the Antarctica tectonic plate should have been turned clockwise (from the perspective of the South Pole).

In the case of similar but eustatical movements of the lithosphere near the equator during Plio-Quaternary glaciation/deglaciation, a significant energy release of up to 351.7 x 10⁸ MJ per square km of oceanic crust should have occurred.

During the interglacial period, including the recent one, the process of glacial isostasy still continues and Antarctica should have a tendency to move the opposite way, counter-clockwise (from the perspective of the South Pole). It seems that such “back and forth” movement could be the hypothetical main cause or at least a trigger factor for ridge displacements.

In reality, these simplified crust movements are greatly affected as well by the processes of denudation and sedimentation of the continents into the ocean; by volcanic activities and landslides; by still unknown movements of the fluid asthenosphere; and by changes in the salinity and temperature of the ocean water.

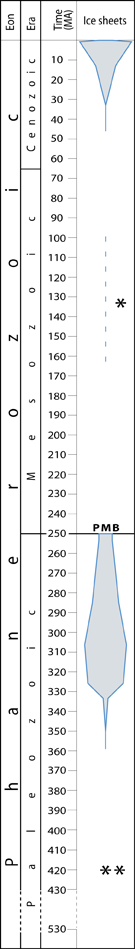

Fig. 4 – The most probable global model of Phanerozoic glaciation**, based on summarized and mean data taken from selected well-known and generally accepted ice sheet models and works in this field completed by: Bentley (1999), Calkin and Young (2002), Frakes et al. (1992), Hughes (1998), Moran et al. (2006), Polyak et al. (2001), Visser (1993), Zachos et al. (1993).
* Existing only in short periods in the Mesozoic, periglacial setting with seasonal winter ice but not one of permanent glaciers.
** The alleged late Ordovician–early Silurian, and late Devonian–early Carboniferous glaciations are not well corroborated and lack sufficient stratigraphic determination and thus are not included in the graph.

At the present time, the planet’s ice sheets and glaciers still contain up to 34 x 10⁶ km³ of ice, which could add an additional 31 x 10¹² tons of water to the ocean or 8 x 10⁷ kg of additional pressure per km² of ocean floor if it melted. This continuing load shift could lead to further isostatic readjustments of all tectonic plates, with the most significant effects along fracture zones and plate boundaries. If human civilization does not reduce its contribution to the process of climatic warming, and if that contribution is the main cause of the rise in temperature, the acceleration of the rise in temperature will sooner or later inevitably also accelerate the glacio-isostatic/eustatic processes, including perhaps the intensification of the oceanic ridge displacements. This movement in turn could amplify the orogeny processes to the level of the rapid formation of new thrusts and fault-block areas and perhaps the building of new mountains. The combination of all these devastating processes, including climatological processes, could push the planet to the very brink of the Holocene and to the onset of a new Postholocene epoch.

References

Andersen, B. G., and Borns Jr., H. W., 1994. An Introduction to Quaternary History and Research with Emphasis on North America and Northern Europe During the Last 2.5 Million Years. Scand. Univ. Press, 205pp.

Barrett, P. J., et al., 1989.In: Barrett, P. J. Antarctic Cenozoic History of the CIROS-1 Drillhole. Bulletin in the Miscellaneous Series of the New Zealand Dep. of Scientific and Industrial Research, 245, 241-251.

Behrendt, J. C., and Cooper, A., 1991. Evidence of rapid Cenozoic uplift of the shoulder escarpment of the Cenozoic West Antarctic rift system and a speculation on possible climatic forcing. Geology, 19, 315-319.

Benn, D.I., Evans, D.J.A., 1998. Glaciers and Glaciation. London. Arnold (Hodder Headline Group), 721 pp.

Bentley, C. R., 1997. Rapid Sea-Level Rise Soon from West Antarctic Ice Sheet Collapse? Science, 275, 1077-1078.

Bentley, M., J., 1999. Volume of Antarctic Ice at the Last Glacial Maximum, and its impact on global sea level change. Quatern. Sci. Rev., 18, 1569-1595.

Brotchie, J.F., Silvester, R., 1969. On Crustal Flexure. J. Geoph. Res., 74(No. 22), 5240-5252.

Calkin, P.E., Young, G., 2002. Global Glacial Chronologies and Causes of Glaciation. In: Menzies, J. Modern and Past Glacial Environments. Oxford. Butterw. Hein., 533 pp., 15-52.

Cracknell, A.P., 2001. Remote Sensing and Climate Change. Chichester. Praxis Publ., 296 pp.

Daly, R.A., 1934. The Changing World of the Ice Age. Yale Univ. Press, 226 pp.

Denton, G. H., and Hughes, T. J., 1981. The Last Great Ice Sheets. Wiley – Interscience, 256pp.

Edwards, R. L., 1995. Paleotopography of glacial-age ice sheets. Science, 267, 536-537.

Ehlers, J., 1996. Quaternary and Glacial Geology. John Wiley & Sons, 547 pp.

Euler, L., 1755. Institutiones Calculi Differentialic (in Latin), Chapter 1-9. In: Blanton, J. D., Translation from Latin, 2000, Springer-Verlag, New York.

Fillon, R. H., 1972. Possible Causes of the Variability of Postglacial Uplift in North America. Quatern. Res., 1, 522-531.

Forsström, P-L, et al., 2003. Simulation of fast-flow features of the Fennoscandian ice sheet during the Last Glacial Maximum. Annals of Glaciol., 37.

Frakes, L.A., 1986. Mesozoic – Cenozoic climatic history and causes of the glaciation. In: Hsü, K.J., Mesozoic and Cenozoic oceans. Geodynamic Series 15, 33-48.

Frakes, L. A., et al., 1992. Climate Modes of the Phanerozoic. Cambridge Univ. Press, 305 pp.

Funder, S., 1989. Quaternary geology of the ice-free areas and adjacent shelves of Greenland. In: Fulton, R. J. Quaternary Geology of Canada and Greenland. Geological Survey of Canada. Geology of Canada, 1, 741-792.

Geological Map of the Ocean Floor, 2008 (Third Edition), Granton Institute of Technology Publ.(available in electronic format).

Haq, B. U., and Van Eysinga, F.W.B., 1998. Geological Time Table. Elsevier Science B. V., ISBN: 0- 444-41362-6.

Herman, Y., et al., 1989. Late Neogene Arctic paleoceanography, micropaleontology, stable isotopes and chonology. In: Herman, Y., The Arctic Seas, Climatology, Oceanography, Geology, and Biology. Van Nostrand Reinhold, New York, 581-655.

Houghton, J.T., et al., 1990. Climate Change; the IPCC scientific assessment. Cambridge. Cambridge Univ. Press, 572 pp.

Houghton, J.T., et al., 2001. Climate Change 2001; Third Assessment Report of the PCC. Cambridge. Cambridge Univ. Press, 693 pp.

Hughes, T. J., 1985. The great Cenozoic ice sheet. Palaeogeogr., Palaeoclimat., Palaeoecol., 50, 9-43.

Hughes, T. J., 1998. Ice Sheets. Oxf. Univ. Press, 342pp.

Kupsch, W.O., 1967. Postglacial Uplift – a Review. In: Mayer-Oakes, W.J., Life, Land and Water, 155-160, 169-186.

Huybrechts, P., 1990. The Antarctic Ice Sheets During the Last Glacial-Interglacial Cycle: A Three-Dimensional Experiment. Annals of Glaciol., 14, 115-119.

Huybrechts, P., et al., 1996. The EISMINT benchmarks for testing ice-sheet models. Annals of Glociol., 23, 1-12.

Khan, S. A., et al., 2007. Elastic uplift in southeast Greenland due to rapid ice mass loss. Geophys. Res. Let., 34, No. 2, L21701, doi:10.1029/2007 GL031468.

Lear, C. H., et al., 2000. Cenozoic Deep-Sea Temperatures and Global Ice Volumes from Mg/Ca in Benthic Foraminiferal Calcite. Science, 287, 269-272.

Leggett, J., 1990. Global Warming, The Greenpeace Report. Oxf. Univ. Press, 483 pp.

Le Meur, E. and Huybrechts, P., 1996. A comparison of different ways of dealing with isostasy: examples from modeling the Antarctic ice sheet during the last glacial cycle. Annals of Glaciol., 23, 309-317

Menzies, J., and Hughes, T. J., 2002. Glaciers and Ice Sheets. In: Menzies, J., Modern and Post Glacial Environments. Butterworth-Heineman, Oxf., 539 pp., 53-63.

Miller, K. G., et al., 1991. Unlocking the Ice House: Oligocene-Miocene Oxygen Isotopes, Eustasy, and Margin Erosion. J. Geoph. Res., 96, No B4, 6829-6848.

Moran, K., et al., 2006. The Cenozoic palaeoevironment of the Arctic Ocean. Nature, 441, 601-605.

Mörner, N.-A., 1980. The Fennoscandian Uplift: Geological data and their geodynamical implication. In: Mörner, N.-A., ed., Earth Rheology, Isostasy and Eustasy, Chichester: Wiley, 251-284.

Nakada, M.,and Lambeck, K.,1988. The melting history of the late Pleistocene Antarctic Ice Sheet. Nature, 333,36-40.

Nesje, A., and Dahl, S. O., 2000. Glaciers and Environmental Change. Arnold, Oxf. Univ. Press, 202 pp.

Officer, Ch. B., et al., 1988. Glacial isostatic adjustment and mantle viscosity. J. Geoph. Res., 93, B6, 6397-6409.

Parubets, N., et al., 2005. Initial Attempt to Establish a Mathematical Model of the Effect of Global Worming on the Lithosphere. In: Cheng, Q., and Bonham-Carter, G., GIS and Spatial Analysis, Proceedings of IAMG2005, Published by International Association for Mathematical Geology, ISBN: 0-9734220-1-7, 1216-1221.

Peltier, W. R., 1988. Global Sea Level and Earth Rotation. Science, 249, 895-901.

Plummer, C., McGeary, D., 1988. Physical Geology, WM.C. Brown Publishers, 535 pp.

Polyak, L., et al., 2001. Ice shelves in Pleistocene Arctic Ocean inferred from glaciogenic deep-sea bedforms. Nature, 410, 453-457.

Sella, G. F., et al., 2007. Observation of glacial isostatic adjustment in “stable” North America with GPS. Geoph. Res. Let., 34, No 2, LO2306, doi: 10.1029/2006 GL027081.

Schnieder, S.H., 1989. The Changing Global Climate. Sci. Amer., 261, No3, 38-47.

Serreze, M. C., et al., 2007. Perspectives on the Arctic’s Shrinking Sea-Ice Cover.Science, 315, 1533-1536.

Shackleton, N. J., 1987. Oxygen isotopes, ice volume and sea level. Quatern. Sci.Rev., 6, 183-190.

Siegert, M. J., 2001. Ice Sheets and Late Quaternary Environmental Change. John Wiley & Sons, 231 pp.

Smirnov, V. I., 1964. Higher Mathematics. Euler’s theorem. Pergamon Press, Oxf., 543 pp., 404-405.

Stewart, R.B., Wiener, J.B., 2003. Reconstructing climate policy: after Kyoto. Washington, The AEI Press, 192 pp.

Svendsen, J.I., Mangerud, J., 1987. Late Weichselian and Holocene sea-level history for a cross- section of Western Norway. J. Quatern. Sci., 2, 113-132.

Tushingham, A. M., and Peltier, W. R., 1991. Ice-3G: A New Global Model of Late Pleistocene Deglaciation Based Upon Geophysical Predictions of Post-Glacial Relative Sea Level Change. J. Geoph. Res., 96, No B3, 4497-4523.

Visser, J. N. J., 1993. A reconstraction of the late Palaeozoic ice sheets of Southwestern Condwana. Gondw. Eight, Findl., Unrug, Banks & Veevers, Balkema, Rotterdam, ISBN: 9054103043, 449-458.

Walcott, R.I., 1970. Isostatic response to loading of the crust in Canada. Can. J. Earth Sci.,7, 716-727.

Wu, P., and Peltier, W.R., 1983. Glacial isostatic adjustment and the free air gravity anomality as a constraint upon deep mantle viscosity. Geoph. J. R. astr. Soc., 74, 377-449.

Wu, P., and Peltier, W. R., 1984. Pleistocene deglaciation and the Earth’s rotation: a new analysis. Geoph. J. R. ast. Soc., 76, 753-791.

Zachos, J. C., et al., 1993. Abrupt Climate Change and Transient Climates During Paleogene: A Marine Perspective. J. Geol., 101, 191-213.

Zachos, J. C., et. al., 1996. High-resolution (104 years) deep-sea foraminiferal stable isotope records of the Eocene-Oligocene climate transition. Paleoceanography, 11, No 3, 251-266.

Zweck, C., and Huybrechts, P., 2003. Modeling the marine extent of Northern Hemisphere ice sheets during the last glacial cycle. Annals of Glaciol., 37, 173-180.
